Chain Block Without Trolley

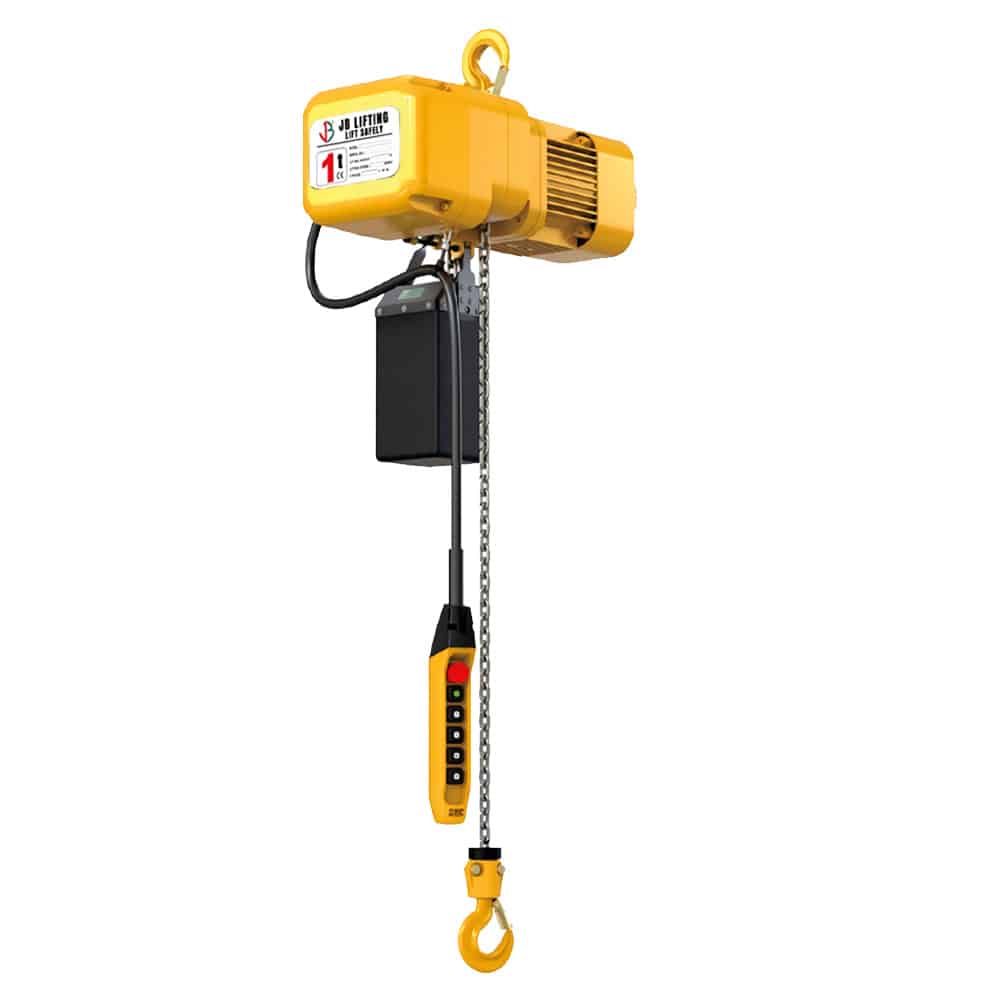

Electric Chain Hoist / Block Without Trolley The electric chain hoist​ without electric trolley​ offers a powerful and reliable lifting solution in Saudi Arabia. With the compact design of hoist electric chain​ and efficient operation, it provides excellent performance for various industrial lifting tasks in . Meets And Exceeds Standards: EN ISO 12100:2010, EN 14492-2:2006 A1:2009, EN 60204-32:2008 ⭐ Key Features of electric chain hoist without electric trolley​: The chain hoist electric​ offers exceptional performance and safety for lifting tasks in industrial settings. Its robust design and advanced features ensure efficient and reliable operations for a variety of applications. The hoist cannot operate in environments with flammable, explosive, or corrosive air. Brake: The hoist adopts a D.C. normal close brake, free of asbestos. When the motor stops, the brake safely and promptly holds the load. Additionally, the hoist features an electronic limit load device that prevents the chain from over-tightening. Friction clutch: The clutch allows the motor to idle run, thereby preventing damage from overload and over-tight revolving. Moreover, the motor includes a heat protection device to prevent damage caused by overheating. The top and bottom hooks, made of high-tensile alloy steel, undergo special heat treatment, which prevents the hooks from breaking or deforming under sudden extra-load. The load chain undergoes carbonization, providing excellent wear resistance and a long service life. Furthermore, the chain container serves as a storage bag, keeping the load chain free from dirt and dust and preventing it from catching while falling freely. The hoist displays an individual serial code, JB Lifting logo, and WLL embossing. The load chain meets the standard BS EN 13157:2000. Finally, the label shows the CE mark, serial number, and SWL. ⭐ Technical Specifications: Below are the technical specifications that define the performance and structural details of the equipment. Relative humidity: <85% Ambient temperature: -25ºC－40ºC Working class: M4 Level of Protection: IP54 Power: 3P/220~480V/50HZ or 60HZ Chain size: φ5×15/φ7.1X 21/φ9×27 �� Electric Chain Hoist Line Diagram​: Explore detailed electric chain hoist​ diagrams and premium lifting solutions. Your trusted source in Saudi Arabia for industrial safety and lifting equipment. Electric Chain Hoist Data Table​: Below is the Electric Chain Hoist Data Table featuring comprehensive technical details including load capacity, lifting speed, motor power, chain specifications, and voltage requirements. Item Code (s) WLL (t) Classification FEM/ISO Duty Rating (ED) Lifting Speed (M/Min) Hoist Motor Power (kW) Load Chain (mm) Fall CHBE-S-01 1 2m/M5 40% 8.6 1.5 7.1 1 CHBE-V-01 26.6%/13.4% 1.4-8.6 CHBE-S-02 2 40% 8.6 3.3 10 1 CHBE-V-02 26.6%/13.4% 1.4-8.6 CHBE-S-03 3 40% 6.7 3.3 10 1 CHBE-V-03 26.6%/13.4% 1.1-6.7 CHBE-S-05 5 40% 4.0 3.3 11.2 2 CHBE-V-05 26.6%/13.4% 0.66-4.0  Item Code (s)  WLL (t)  H Min  A  B  C  D I J  K CHBE-S-01 1 460 142 102 329 307 276 630 38 CHBE-V-01 354 CHBE-S-02 2 650 185 59 329 307 276 720 45 CHBE-V-02 354 CHBE-S-03 3 525 185 165 358 336 430 780 45 CHBE-V-03 471 CHBE-S-05 5 860 240 110 358 336 430 870 61 CHBE-V-05 471 Note:Need a custom chain length? Your Solution is Just a Message Away. �� Application of Electric Chain Hoist without Electric Trolley​: The electric chain hoist without electric trolley​ is suitable for a wide range of lifting tasks in industrial settings, including: Manufacturing facilities: Ideal for lifting heavy machinery and equipment during production processes. Warehouses and distribution centers: Perfect for loading and unloading goods from storage areas or trucks. Construction sites: Essential for lifting materials and tools to different levels on construction projects. Workshops: Suitable for lifting and maneuvering workpieces or components in automotive and metalworking workshops. ��️ How to Use: Proper usage of a chain hoist electric​ ensures safe and efficient lifting operations in industrial settings. By following the correct procedures, you can maximize the performance and longevity of your chain hoist electric​ while maintaining workplace safety. Ensure the relative humidity is below 85% and the ambient temperature is within the range of -25°C to 40°C before operation. Connect the hoist to a compatible power source according to the specified voltage and frequency requirements. Attach the load securely to the hoist using the top hook, ensuring it is properly positioned and balanced. Use the control panel to operate the hoist, raising or lowering the load as needed. The electronic limit load device prevents the chain from being over-tightened. Monitor the operation of the hoist, ensuring smooth and controlled lifting. The brake engages automatically once the motor stops, holding the load safely in place. After use, store the chain hoist electric​ in a safe and dry location, keeping the load chain in the chain container to protect it from dirt and debris. ⚠️ Precautions of Hoist Electric Chain​: When using a hoist electric chain​, it is essential to follow safety precautions to ensure reliable performance and prevent accidents. In Saudi Arabia, adhering to these guidelines enhances operational efficiency and ensures safe lifting practices. Ensure the electric chain hoist​ has a correct earth connection before applying it for operation. Before lifting a load, examine the load chain to check for any twists, kinks, or turn-overs of the bottom hook for multi-falls. Only use the hoist for loads within its specified capacity; never exceed the rated capacity. Make sure to lift the load vertically; avoid lifting diagonally or towing a load beyond 10 degrees. While operating, never allow anyone to stand or work underneath the load. Do not use the load chain as slinging tackle for lifting any load. Never apply any load to the tip of the hook for lifting. When lifting, avoid operating the hoist with rapid up and down motions repetitively. Do not run the hoist beyond the limit position. Never lift a load using two or more hoists simultaneously. Do not dismantle or adjust the limit load device yourself. Avoid using the limit load device for measuring the load. Ensure the load chain is properly lubricated with suitable oil or grease before use, and perform periodic lubrication to ensure normal operation. When lifting, ensure the slings are properly placed in the hook throat, and the safety latch is securely closed. ❓ Frequently Asked Questions: What is the main use of an electric chain hoist without a trolley? It’s designed for vertical lifting applications where lateral movement is not required. Ideal for fixed lifting points in manufacturing, workshops, warehouses, and construction sites. Can the hoist be used outdoors? Yes, it can be used outdoors within specified environmental conditions (ambient temperature -25°C to 40°C and humidity <85%). However, it should be protected from rain and corrosive environments Is the hoist compliant with international safety standards? Yes, it meets and exceeds EN ISO 12100:2010, EN 14492-2:2006 A1:2009, EN 60204-32:2008, and BS EN 13157:2000 standards and includes CE certification. Does it have overload protection? Yes, it features a friction clutch to prevent overload and a limit load device to avoid over-tightening of the chain. What kind of maintenance is required? Routine checks include inspecting the chain for damage, lubricating it regularly, verifying hook safety latches, and checking the brake and motor protection devices for proper function.
